Product Description:

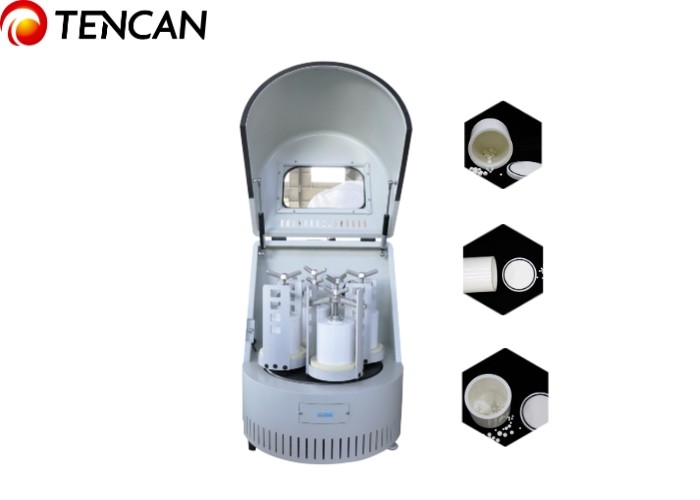

Planetary Ball Mill - The Ultimate Grinding Machine for Scientific Research
The Planetary Ball Mill is a sophisticated grinding machine engineered for the efficient and accurate grinding of diverse materials in scientific research laboratories. Its distinctive design and advanced technological features provide unmatched performance and adaptability, rendering it an indispensable tool for any research endeavor.
Product Overview
The Planetary Ball Mill is a high-energy milling machine that employs a rotating planetary disk to reduce materials to sub-micron particle sizes. It comes with four grinding jars, each possessing a capacity of 1 liter, making it perfectly suited for grinding substantial quantities of material simultaneously.The product is designed for use with zirconia jars and balls, ensuring high purity and minimal contamination of the ground material.
Main Features
- Jar Volume: Each 1L - With four 1L jars, the Planetary Ball Mill has a total capacity of 4L, allowing for efficient grinding of large quantities of material.
- Warranty: 1 Year - We stand by the quality of our product and offer a 1-year warranty to ensure customer satisfaction.
- Accessories: Zirconia Jars And Balls - The Planetary Ball Mill comes with zirconia jars and balls, ensuring high purity and minimal contamination during the grinding process.
- Max Production Capacity: 1.32L - With a maximum production capacity of 1.32L, this machine is perfect for high volume grinding projects.
- Rotate Speed: 70-670rpm - The Planetary Ball Mill offers a wide range of rotate speed options, allowing for precise control over the grinding process.
Benefits
- Efficient - The high-energy grinding mechanism ensures quick and efficient grinding of materials, saving time and effort.
- Precise - Thanks to its advanced technology, the Planetary Ball Mill provides accurate control during the grinding process, ensuring consistent outcomes.
- Versatile - Suitable for grinding a wide range of materials, including hard, brittle, fibrous, and soft materials.
- Safe - The product is designed with safety in mind, with features such as a safety switch and overload protection.
Applications
The Planetary Ball Mill is suited for a wide range of scientific research applications, encompassing, but not restricted to:
- Mechanical alloying
- Cell disruption
- Nanomaterials synthesis
- Pharmaceuticals
- Materials science
- Ceramics
Boasting unmatched performance and versatility, the Planetary Ball Mill is an indispensable tool for every scientific research lab. Get yours today and experience the ultimate grinding machine for yourself!
Features:
The experiment's consistency and repeatability are ensured by the stable revolving speed of the gear transmission.
By incorporating the planetary movement principle, the machine achieves high speeds, substantial energy output, high efficiency, and fine granularity.
With the ability to produce four powder samples at once, the machine offers the convenience of different sizes and materials for experimentation.
Controlled by a frequency converter, the machine allows for the selection of an ideal rotating speed based on expected experimental results. The converter is also equipped with a device for under voltage and over-current protection of the motor.
Featuring timing power off, self-timing forward and reversal rotating, the planetary ball mill offers the option of one-way direction, alternation, succession, and time setting operation modes for increased grinding efficiency.
Technical features of Tencan Ball Mill include a low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, and minimal loss.
The machine is equipped with a safety switch to avert accidents in case the safety cover is removed during operation.
Technical Parameters:
| Specifications | Value |
| Product Name | Lab Planetary Ball Mill |
| Warranty | 1 Year |
| Power | 0.75KW |
| Voltage | 220V-50Hz or 110V-60Hz |
| Working Model | 2 or 4 Pots One Time |
| Feeding Size | 1 to 10mm |
| Output Size | Minimum 0.1μm |
| Accessories | Zirconia Jars and Balls |
| Key Word | Laboratory Scale Planetary Ball Mill |
| Feature | High Speed and High Efficiency |
| Key Words | Ball Mill Grinder, Grinding Planetary Ball Mill, Grinding Planetary Ball Mill Price |
Applications:
Planetary Ball Mill - TENCAN
Brand Name: TENCAN
Model Number: XQM-4
Place of Origin: Changsha, Hunan, China
Certification: ISO CE
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Plywood Case & Foam
Delivery Time: 7-10 days
Payment Terms: T/T, Western Union
Supply Ability: 420 Sets per Month
Power: 0.75KW
Feeding Size: 1 to 10mm
Max Production Capacity: 1.32L
Accessories: Zirconia Jars and Balls
Output Size: Minimum 0.1μm
The Planetary Ball Mill from TENCAN is a high-energy ball mill designed for grinding and mixing nanoparticles. It is widely used in various industries such as chemical, pharmaceutical, ceramic, and materials science. This innovative product offers efficient and uniform grinding of fine particle sizes, making it a must-have for any laboratory or production facility.
The milling ball mill utilizes a planetary motion to grind materials, ensuring high grinding efficiency and uniformity. The grinding jars and balls, crafted from zirconia, offer superior wear resistance and are ideal for grinding materials that exhibit high hardness. The high-energy design of the ball mill also allows for quick and efficient mixing of materials.
The compact design of the Planetary Ball Mill makes it easy to use and ideal for small spaces. The 0.75KW power and 1.32L production capacity allow for continuous operation without the need for frequent refilling. The feeding size of 1 to 10mm makes it suitable for a wide range of materials.
This product, possessing ISO and CE certifications, fulfills international standards for quality and safety. It is also customizable to meet the specific needs of different industries. The minimum order quantity of 1 set and negotiable price make it accessible for both small and large-scale production.
In conclusion, the Planetary Ball Mill from TENCAN is a versatile and efficient tool for grinding, mixing, and producing nanoparticles. Its high-energy design, easy usability, and excellent wear resistance make it a valuable addition to any laboratory or production facility.
Customization:
Brand Name: TENCAN
Model Number: XQM-4
Place of Origin: Changsha, Hunan, China
Certification: ISO CE
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Plywood Case & Foam
Delivery Time: 7-10 days
Payment Terms: T/T, Western Union
Supply Ability: 420 Sets per Month
Warranty: 1 Year
Accessories: Zirconia Jars and Balls
Feature: High Speed and High Efficiency
Weight: 90kg
Max Production Capacity: 1.32L
Key Words: High-Energy Ball Mill, Ball Mill Grinding Machine
Packing and Shipping:
Packaging and Shipping of Planetary Ball Mill
The Planetary Ball Mill is meticulously packaged to safeguard its safety and quality during shipment. It is enclosed in a robust cardboard box lined with foam padding and shock-absorbing materials to prevent any harm during transportation.
The packaging also includes a user manual and all necessary accessories, such as grinding jars and balls, to ensure a complete and hassle-free setup for the customer. The box is subsequently sealed and affixed with the required information, encompassing the product name, model number, and shipping destination.
The shipping of the Planetary Ball Mill is usually done by air or sea, depending on the customer's location and preference. Our team collaborates closely with reputable logistics providers to guarantee prompt and effective delivery to our clients across the globe.
For international shipments, the necessary customs documents and declarations are provided to ensure smooth clearance at the destination country's customs. Our team also takes great care in handling any special shipping requirements, such as temperature-controlled shipping, to ensure the product's safety and quality.
Overall, our packaging and shipping process for the Planetary Ball Mill is designed to provide a hassle-free experience for our customers and ensure the safe and timely delivery of our product.
